COMING SOON - No. 5 - Hydraulic weld distortion compensation!

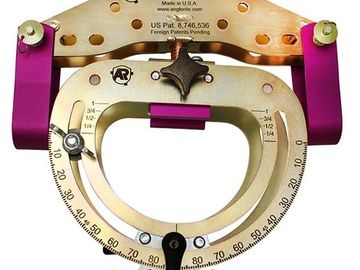

The Angle-Rite® Clamp has built-in patented weld distortion compensation is just one part of the components to make up the Angle-Rite® Fabricating System. Build quality tube projects in less time and with less material waste. Available for square and round tube or pipe in two different size categories.
Set-up and weld* complicated tube and pipe joints without losing your precise angles with an easy, repeatable process. Minimize the tedious process of measuring and marking length and cutting angles, while maintaining the rotational alignment.
Die and sling set sizes range from 7/8" to 1-1/2" square and round tube. Pipe sizes are 3/4" and 1" .
*This clamp is not intended to hold permanent structures, but is an aid in helping set-up your entire project and hold it in place for welding.
Designed for larger tube and pipe. Set-up and weld* complicated tube and pipe joints without losing your precise angles with an easy, repeatable process. Minimize the laborious process of measuring and marking length and cutting angles, while maintaining the rotational alignment. Built-in weld distortion compensation increases your quality and saves time.
*This clamp is not intended to hold permanent structures, but is an aid in helping set-up your entire project and hold it in place for welding.
Used with the Angle-Rite® Clamps creates an easy to use fabricating system.
Our die sets are interchangeable within each size group. This allows you to purchase your clamp in a size of your choice and additional sizes to have on hand for when an intersecting tube or pipe is a different diameter than the intersected tube or pipe.

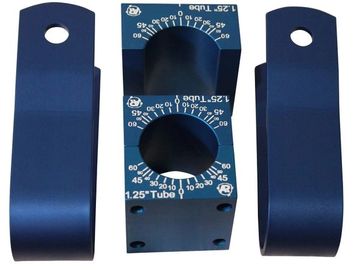

The complete die set consists of 2 slings and the corresponding dies. Made of durable aluminum with an anodized finish. Color coordinated and laser engraved for readability. No. 3 Clamp sizes are 7/8" to 1-1/4" Tube; 3/4" and 1" Pipe.
Our die sets are interchangeable within each size group. This allows you to purchase your clamp in a size of your choice and additional sizes to have on hand for when an intersecting tube or pipe is a different diameter than the intersected tube or pipe.
The complete die set consists of 2 slings and the corresponding dies. Made of durable aluminum with an anodized finish. Color coordinated and laser engraved for readability. No. 4 Clamp sizes are 1-5/8" to 1-3/4" Tube; 1-1/4"" and 1-1/2" Pipe.

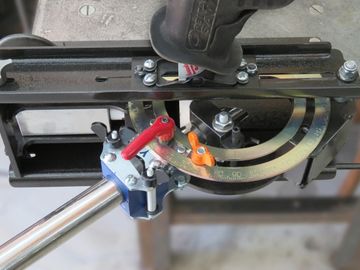

Available only for our No. 3 Clamp. The Miter/Notcher cutting attachment will notch your tube or pipe using a hole saw powered by a drill, or a miter cut with a reciprocating saw. Designed to fit Milwaukee brand reciprocating saw models 2720-20, 6523-21, and others with a removable shoe assemblies.
When you purchase an Angle-Rite® cutting attachment, you enable your Angle-Rite® Clamp to become a fully integrated fabricating system which completes your project in easy, repeatable steps.
Some call this our little cheat. We call it our Angle & Length Gauge. In just a few easy steps, it grabs the angle, length, and rotation of the adjoining tube or pipe and locks into place so that you can accurately miter/notch the ends without having to do the back-and-forth dance of measuring and cutting. Once notched, simply pop it back into place and secure with your weld. That's it! No tape measure necessary.
Watch our "Notch Tubes Accurately the First Time" video to learn more!
The Angle-Rite® Fabricating System is a patented product of Meridian Stainless, Inc. US Patent 8,746,536.
Angle-Rite® is a trademark of Meridian Stainless, Inc.
